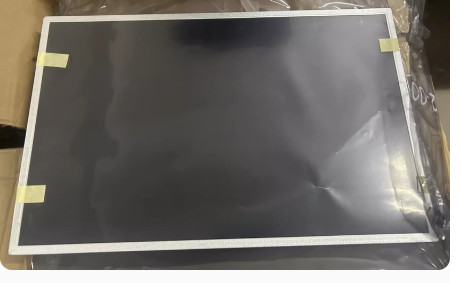

LTM220CS01 Samsung 22.0" 1920(RGB)×1200, 300 cd/m² INDUSTRIAL LCD DISPLAY

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 473.76(W)×296.1(H) mm, outline size of 497.76(W)×320.1(H)×37.28(D) mm, viewing area size of 477.7(W)×300.1(H) mm, with surface treament of Antiglare (Haze 44%), Hard coating (3H), net weight of 3.00Kgs (Max.). As a S-PVA, Normally Black, Transmissive LCM product, LTM220CS01 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td), 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 92% (NTSC). This product adopted 6 pcs CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 30K hours. LTM220CS01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
