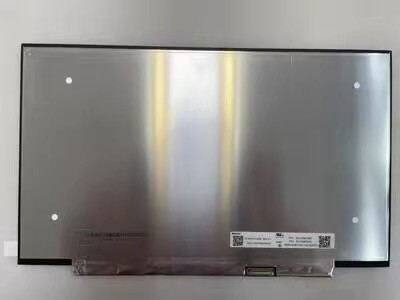

تفاصيل المنتج:
|
Brand: | BOE | Diagonal Size: | 16.0" |
---|---|---|---|
Resolution: | 2560(RGB)×1600, WQXGA 188PPI | Brightness: | 350 cd/m² |
Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10 | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
---|---|---|---|---|
NE160QDM-N62 V8.0 | Oxide TFT-LCD , LCM | BOE09B6 | ||
Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
0 ~ 50 °C | -20 ~ 60 °C |
Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
---|---|---|---|
350 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
Best View on | Display Mode | Contrast Ratio | |
Symmetry | ADS, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
73% | 99% | 76% | |
DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
76% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
White Variation : | 1.25/1.67 (Max.)(5/13 points) |
Panel Size : | 16.0" | |||
---|---|---|---|---|
Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
2560(RGB)×1600 [WQXGA] | RGB Vertical Stripe | 0.13464×0.13464 [188PPI] | 0.04488×0.13464 | |
Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
344.678(H) × 215.424(V) | - | 349.68(H) × 231.42(V) | 2.45/3.0 (Typ./Max.) mm | |
Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
Flat Rectangle | Landscape type | 16:10 (H:V) | Slim (PCBA Flat, T≤3.2mm) | |
Mounting : | Without | |||
Other Detail : | Weight | Panel Cover | Treatment | |
290g (Max.) | - | Antiglare, Hard coating (3H) |
Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
---|---|---|---|---|---|---|
WLED | Edge light type | 10S6P | 6 strings | 15K(Min.) | - | |
WLED Electrical : | Voltage Supply | Current Supply | Power | |||
29.0V (Max.) | 17.6mA (Typ.) | |||||
Interface Features : | Position | Backlight Driver | Type | |||
- | With LED Driver | Included in signal interface | ||||
Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
5.0/12.0/21.0V (Min./Typ./Max.) | 301.7mA (Max,) | 3.62W (Max.) |
Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
---|---|---|---|---|---|---|
3.3V (Typ.) | 327.3mA (Max.) | 0.99/1.08W (Typ./Max.) | ||||
Interface Features : | Position | Signal | Type | |||
eDP (4 Lanes), eDP1.4, HBR1 (2.7G/lane) | Connector | |||||
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
STM | MSAK24025P40 | 0.5 mm | 40 pins | 1 pcs |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×231.42(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 290g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE160QDM-N62 V8.0 can provides 350 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE160QDM-N62 V8.0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
